| Bentu Auto Passenger Vehicle Specification | ||
| Version | BTE03 | BTE03-H |
| EU Homologation | EEC(L7e-CU) | |
| Dimension(mm) | 3564*1220*1980 | 3680*1220*1980 |
| 3564*1220*1685 | 3680*1220*1685 | |
| Wheelbase(mm) | 2200 | 2335 |
| Front/Rear Wheel distance(mm) | Front 920 Rear 1020 | Front 970 Rear 1040 |
| Cargo payload(kg) | 340 | 990 |
| Curb weight | 595 | 814 |
| GrosS weight | 1076 | 1945 |
| Minimum Turning radius(m) | 4.5 | |
| Minimumground clearance (mm) | 140 | |
| Brake type | Front disc rear hub | |
| Tire specification | 145/70R12 | 145R12LT8PR |
| Motor type | Permanent synchronous motor | |
| Rated power(kw) | 7.5 | 10 |
| Maximum Torque(Nm) | 60 | 100 |
| Max.Speed(km/h) | 81 | |
| Battery type | LFP | |
| Battery capacity(Kwh) | 8.352 | 15.97 |
| Max.Range (km) | 80-100 | 150-180 |
| Bentu Auto Mini Commercial Vehicles | |||
| Version | BTE03 | BTE03-H | |
| Charger power | 3.3 | 3.3 | 320V DC fast charging |
| Charging Time 20-80% | 1.5 | 3 | 0.3 |
| Charging Time 0-100% | 3 | 5 | 0.5 |
| Suspension type |
Front:McPherson independent suspension Rear:Leaf Spring Integral Bridge |
||
| Drive mode | Rear drive | ||
| Transmission | Fixed ratio 10:1 | ||
| Capacity (person) | 1 | ||
|
Cargo Box/hopper Size(mm) (Inner dimensions) |
1800*1140*1300 1800*1140*330 |
1920*1140*1300 1920*1140*330 |
|
| ABS | Standard | ||
| EBD | Standard | ||
| Heating and cooling air conditioner | Standard | ||
| Anti-lock braking system | Standard | ||
| Brake Energy Recovery System | Standard | ||
| Low-speed driving reminder function | Standard | ||
| Electric power steering system | Standard | ||
| Reverse radar | Standard | ||

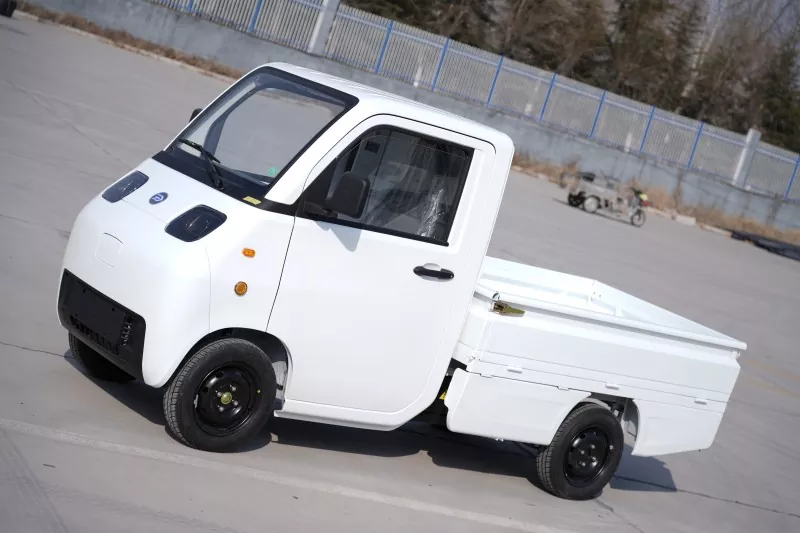

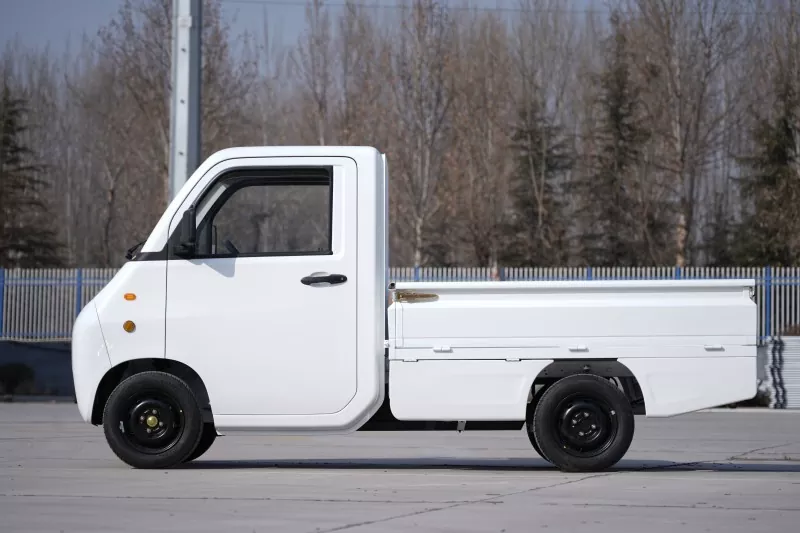

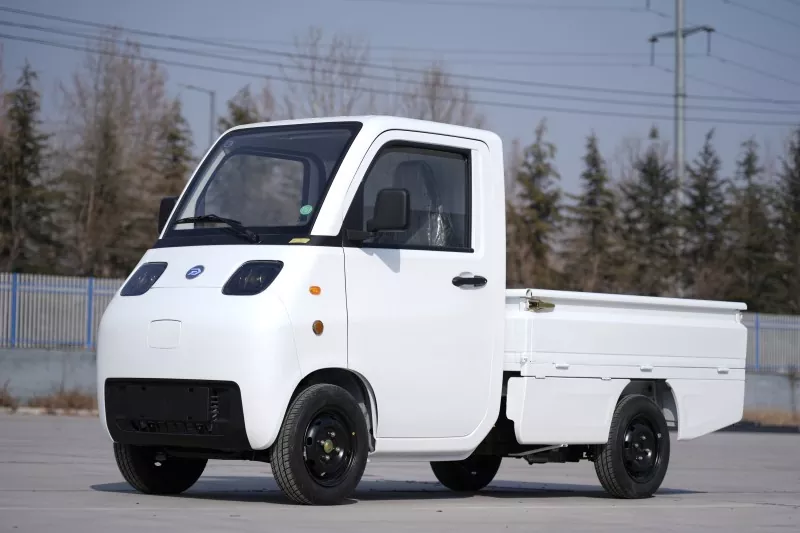

The BTE03 has a compact and small body,suitable for short distance transportation within the city,and can flexibly shutte throughnarrow streets.
Closed cargo box, with strong sealing, can protect goods from weather conditions; The rear is equipped with a double door structure, and there is also a door opening design on the side, which facilitates multi-directional loading and unloading of goods and improves usability.
The driver's cabin window has a large area, optimizing the driving field of view;

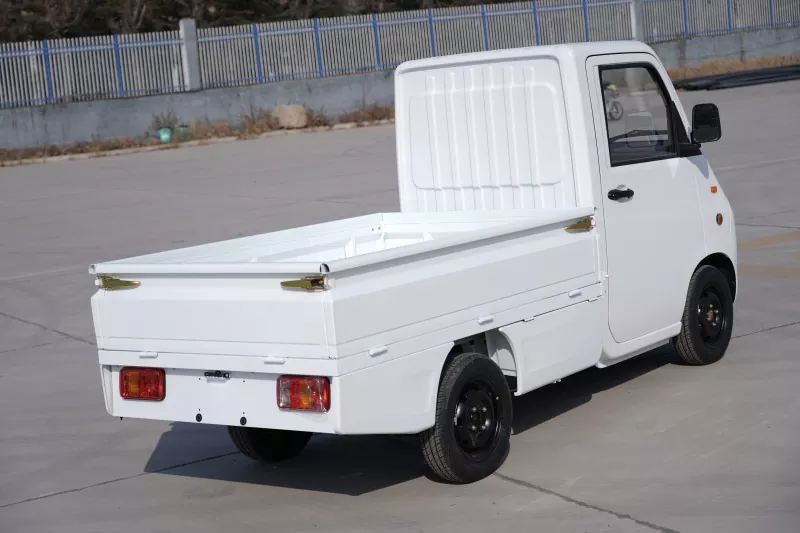

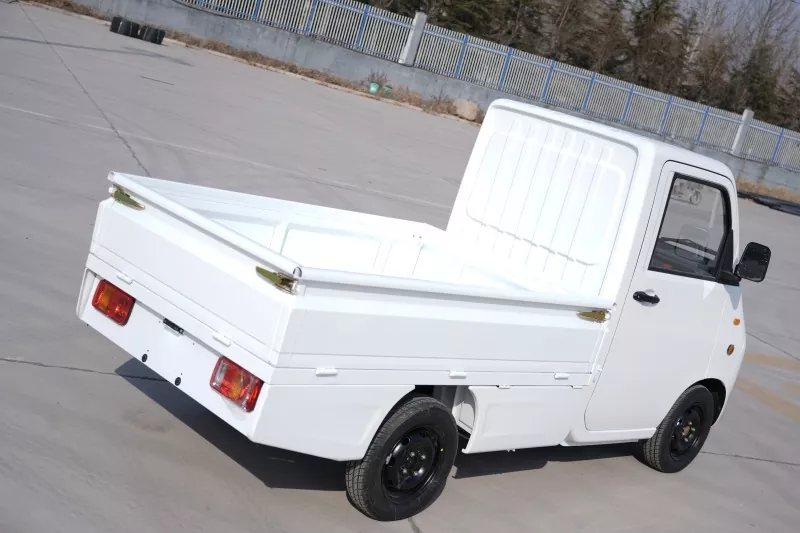

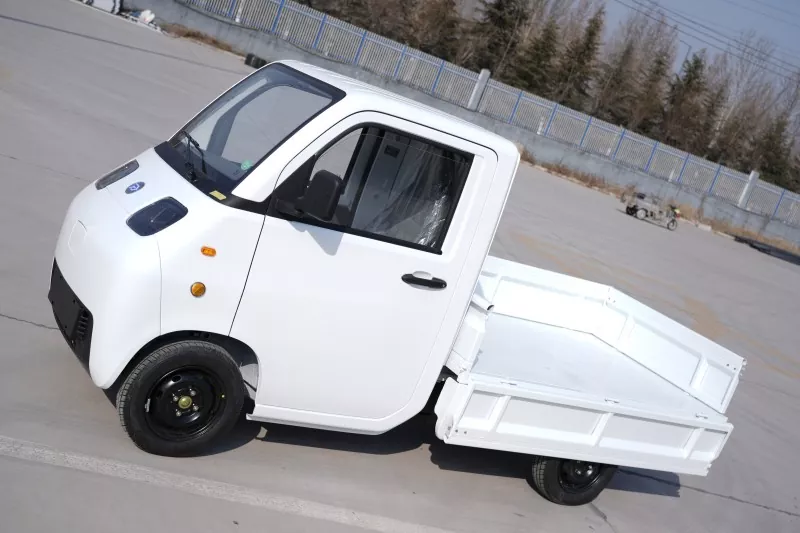

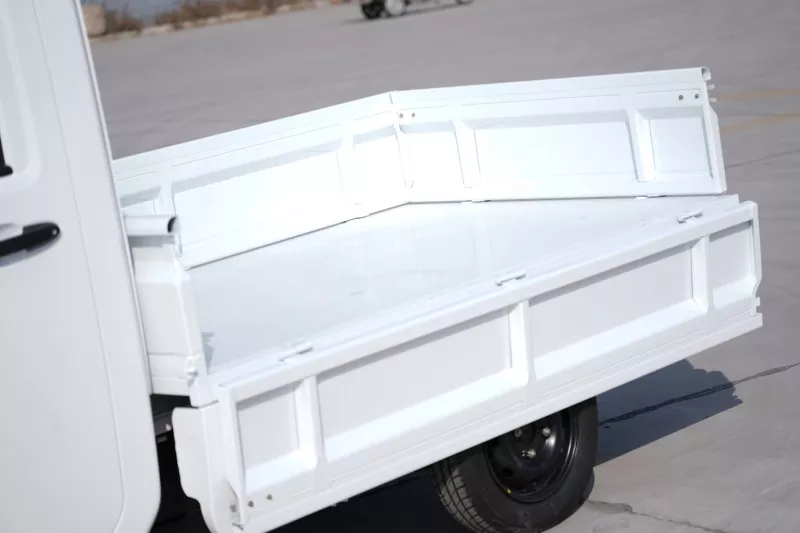

Open type flatbed cargo compartment, with three sides open for quick loading and unloading of large or iregular items
01.The driver's cab has a wide view;Equipped with ergonomically designed seats,the cockpit is morecomfortable;
There is also a two-section mesh compartment under the door,which can be used to store commonly used.
2.Easy to carry cargo,the capacity of the van can reach 3m³,With a load capacity of up to 340kg,it is truly asmall car with a large space.
01
The range is 100 kilometers. The fully equipped power energy recovery system is the "best assistance" on the road to wealth;
02
High-quality lithium iron phosphate power battery, IP68 dustproof and waterproof, high safety, high carbon steel battery pack armor protection, equipped with BMS battery management system, long service life;
03
Equipped with a high-speed motor with a maximum power of 15kW and a speed of 9000 times, a 10.25 high-speed ratio rear axle, allows for longer travel, stronger power, and more efficient transportation.
